Maker Jon Bumstead has penned a information demonstrating construct a single-pixel digicam — however one which might ship a recognizable picture, scanning throughout a goal object regardless of missing any transferring elements.
“What if there was a technique to acquire a picture with a single detector, a single pixel? It doesn’t appear attainable,” Bumstead admits. “Photographs encompass 2D info — how might all the data be captured with a single level measurement? A method to do that is by scanning that time over the field-of-view, one-point at a time like a 3D lidar map — the view of the photodector adjustments over a scene with a mirror scanner. However there’s truly one other technique to resolve this drawback. And it amazingly does not require any transferring elements.
The method to which Bumstead is referring is compressed sensing utilizing structured illumination — typically referred to as “ghost imaging.” On this, it is attainable to “scan” over an object utilizing a single-pixel photodetector and nil transferring elements — by illuminating the thing with differing patterns of sunshine, supplied on this case by a easy matrix of addressable LEDs.
“Think about an object that’s been illuminated with a novel sample of sunshine and all of the mirrored mild from the thing is collected onto a single photodetector, making a single measurement,” Bumstead explains. “The sign measured for this sample is a linear mixture of mirrored mild getting back from the pattern. With a single measurement, there is no such thing as a technique to decide how a lot every of the factors is contributing to the sign. However what if we then illuminated the thing with a unique sample and made one other measurement. After which one other sample, and one other measurement — till we had a dataset consisting of recognized illumination patterns and their corresponding single photodetector measurements.”

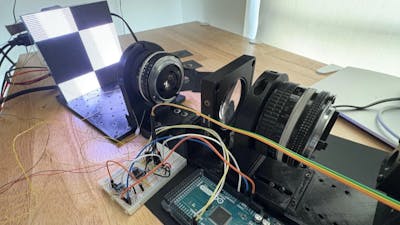

The digicam is ready as much as seize photos of 3D-printed targets, positioned at a really exact place within the path of the sunshine beam. (📷: Jon Bumstead)
To show the idea, Bumstead constructed a setup for ghost imaging: a low-cost 64×64 LED matrix, a Raspberry Pi 3 Mannequin B single-board laptop, an Arduino Mega 2560 board, a pair of Nikon lenses designed for single-lens reflex (SLR) cameras plus a plano-convex lens, all specializing in a single large-area photodiode. “The primary lens demagnifies the LED matrix onto the thing,” Bumstead explains. “The thing blocks a few of the mild and the purpose is then to gather this mild onto a single photodetector.
“We’d like a second lens to do that, however as a substitute of re-imaging the LED matrix, the second lens photos the aperture cease of the primary lens. As a result of the sunshine footprint will increase after the primary lens, it’s also vital to have a big diameter lens near the thing to start focusing the sunshine down as quickly as attainable. I added a plano-convex lens to do that, it’s primarily performing as what is named a area lens.”
Regardless of having solely a single photodiode as its detector, this “digicam” captures the information for a full 2D picture — finally. (📷: Jon Bumstead)
Every time the “digicam” fires, a single studying is taking from the photodetector; the sample on the LED matrix is then modified and a brand new studying taken. With sufficient readings, the information might be processed by a MathWorks MATLAB script to reconstruct the goal objects: 3D-printed cutouts performing as proof-of-concept targets. “The photographs are restricted in decision. The objects aren’t notably fascinating,” Bumstead admits. “However after I assume that I haven’t got a 2D sensor on this digicam, I really feel fairly awestruck by the end result.”
The total write-up, together with 3D-printable elements and supply code, is offered on Instructables.
