Tactile strain sensors are utilized in every part from consumer interfaces for computer systems to sensing techniques for robots. Whereas they’re most readily acknowledged in trackpads on laptop computer computer systems, comparable applied sciences may give robots details about what they’re touching, and the way a lot strain is being utilized. However the conventional digital applied sciences that make up these units are usually not appropriate for each use case. In healthcare settings, particularly close to an MRI machine, sturdy magnetic fields can render these techniques ineffective. Excessive environments — corresponding to these with excessive ranges of radiation or explosive gasses — are additionally unsuitable for tactile strain sensors.
A workforce of researchers at Tampere College in Finland was impressed by a sort of soppy actuator that’s generally present in delicate robots. These actuators use both fluid or fuel to broaden chambers in delicate supplies to set off motion. They realized that this course of may primarily be reversed, and deformations of the actuator would set off airflow again within the route of the reservoir. By measuring modifications in strain, one may construct a tactile strain sensor that’s delicate and utterly devoid of digital parts.
The design of the brand new sensor (📷: V. Lampinen et al.)

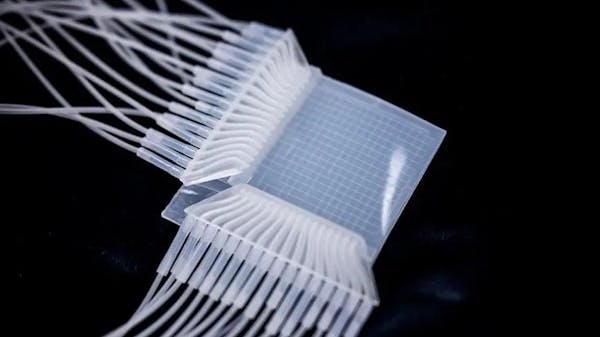

A single strain sensor can solely present simply a lot info, so the workforce developed a delicate touchpad sensor that consists of 32 pneumatic channels organized in a grid sample with 16 channels aligned row-wise and 16 column-wise. When a pressure is utilized to the pad, solely the row and column channels nearest to the contact location deform, resulting in a rise of their circulation resistance, particularly within the channel instantly beneath the contact level.
The touchpad measures this circulation resistance via a strain divider system, analogous to {an electrical} voltage divider, the place every pneumatic channel connects in sequence with a relentless pneumatic resistor. A relentless provide strain of 60 kPa is utilized on one aspect, whereas the alternative aspect vents to atmospheric strain. By measuring the strain variations at particular junctions alongside every channel utilizing strain gauges, the touchpad precisely detects the contact location and depth.
Fabricated from delicate polydimethylsiloxane utilizing microfabricated molds, every channel has a 200 micrometer by 200 micrometer cross-section and spans 40 mm in size, with 2.65 mm spacing between channels, leading to a 40 mm x 40 mm energetic sensing space inside a 68 mm x 68 mm gadget.
Stress maps produced by the brand new sensor (📷: V. Lampinen et al.)
A examine demonstrated that the sensors preserve their performance even when bent, with solely slight variations in strain response resulting from channel deformation. Nevertheless, ambient situations corresponding to air strain, temperature, and humidity do have an effect on the sensor’s efficiency. As an illustration, decrease provide pressures cut back sensitivity, however this impact may be normalized. Equally, elevated temperatures barely lower sensitivity resulting from modifications in air properties and elastomer traits, whereas increased humidity additionally reduces sensor response. Regardless of these influences, the sensor’s efficiency was steady in typical laboratory situations.
Nevertheless, the touchpad nonetheless has limitations when in comparison with fashionable capacitive touchpads, which use row-column scanning to independently sense every crossing, permitting for a lot increased resolutions and the detection of quite a few simultaneous touches. In contrast to capacitive touchpads that may scan a big matrix at frequencies of 200 Hz or extra, fluidic techniques face challenges in attaining such excessive scanning charges as a result of pneumatic valves can not change quickly sufficient. Because it stands, this know-how will not be the most effective at school. However in some circumstances, it could be the one viable choice, and it has been proven to carry out fairly properly for a lot of purposes.
