LoRa is a proprietary modulation that permits low bit fee, low energy, and long-range communications. The metering business initially developed it, nevertheless it shortly grew to become a extremely impactful expertise in IoT, the place gadgets usually want to fulfill strict energy consumption necessities.
LoRa works on license-free sub-gigahertz radio frequency bands such because the EU863–870 ISM band. It might obtain knowledge charges between 0.3 kbit.s−1 and 27 kbit.s−1, relying on a parameter referred to as spreading issue and in addition relying on the system’s bandwidth.
As a result of traits of the modulation, LoRa techniques normally have a excessive hyperlink finances and receivers with sensitivities of round −140 dBm are quite common. Based on Semtech, the proprietary agency, LoRa gadgets are able to communications of as much as 15 km. Regardless of this, the world distance document for ground-to-air LoRa communications is 832 km, utilizing simply 25 mW of transmitting energy. The document for ground-to-ground communications is 212 km.
These outcomes spotlight the resilience and long-range capabilities of LoRa applied sciences and the affect they will have on the IoT business, particularly for long-range, low-power, and low-availability functions.
The LoRa Modulation
LoRa is the modulation utilized by the bodily layer protocol of the LoRaWAN specification, also referred to as LoRaPHY. It’s best described as a Frequency Shift Chirp Modulation (FSCM) as famous by Vangelista:
A detailed inspection of LoRa reveals that the information-bearing component is the frequency shift firstly of the image and the chirp is much like a form of service. Because of this, in our opinion, LoRa is healthier described as a Frequency Shift Chirp Modulation (FSCM).

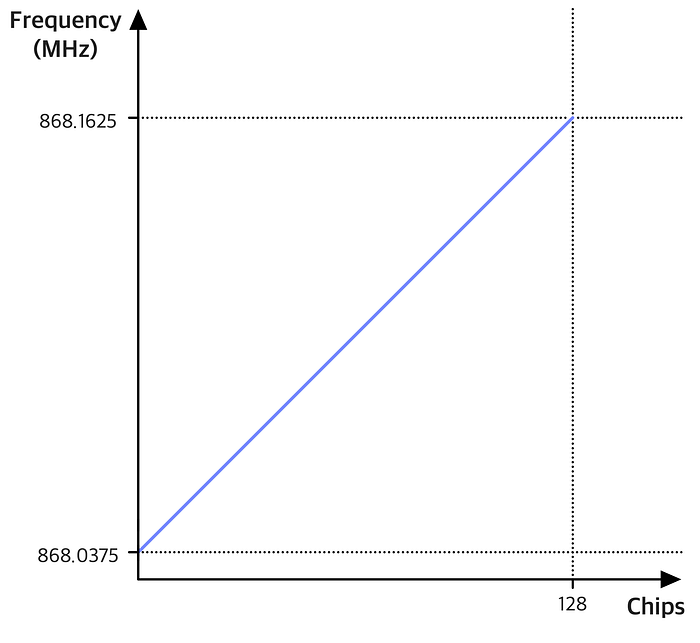

A linear frequency chirp, LoRa chirp or, for this text, simply chirp, is a sign wherein frequency varies linearly with time. Chirps can have a relentless constructive (up-chirp) or unfavorable (down-chirp) frequency variation. Every LoRa chirp sweeps over the entire vary of frequencies representing the bandwidth of the system, BW.
The length of every LoRa chirp relies on the variety of time chips of every image. A time chip is a portion of time that relies on the system bandwidth and is given by Tchip = 1/BW. The variety of time chips per image, C, relies on the spreading issue, SF, and is given by C = 2^SF. Subsequently, the length of every image, Tsymbol, is Tsymbol =C×Tchip =2^SF ×Tchip.
As a result of LoRa techniques function with a set bandwidth, the length of every time chip is mounted as nicely. Therefore, SF is the parameter that actually impacts how a lot a logo “spreads” in time. The upper the SF, the longer the image interval.
The Modulation Continued

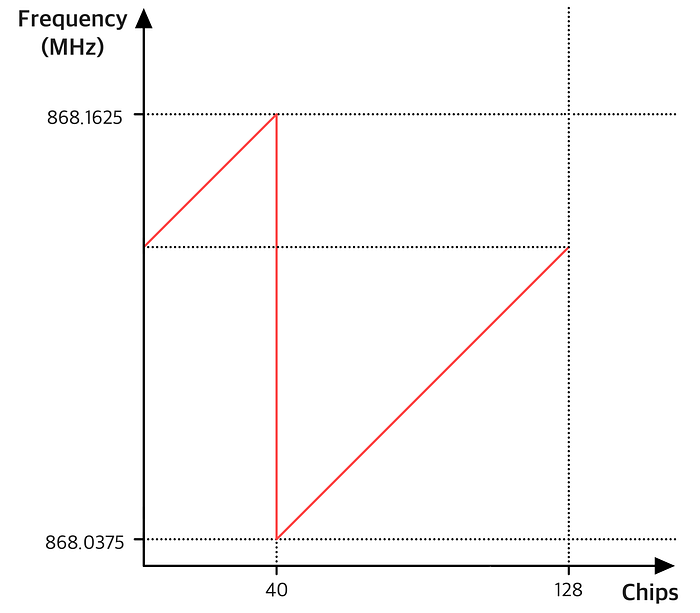

Every LoRa image consists of a chirp with a vertical discontinuity positioned at one of many time chips. This discontinuity is just a frequency shift from the frequency the sign is firstly of the chip to the bottom frequency accessible.
After the chip, the sign continues the frequency sweep from that lowest frequency till reaching the beginning frequency once more, masking the entire bandwidth. In different phrases, every LoRa image performs a linear frequency sweep that rolls again to the bottom frequency throughout the image interval. This implies the variety of totally different symbols, N, for every SF, is the same as the variety of time chips (N = C).
The variety of bits per image, M, is the same as the SF (M = SF). Which means that for bigger SFs,
every image carries extra info. At first sight, this may appear to indicate that bigger spreading elements present bigger bitrates. Nevertheless, for a rise of 1 within the SF, it takes double the time to transmit every image (as a result of we’ve got 2^(SFm+1)/2^SFm = double the time chips).
Rising the SF lengthens the image interval, outweighing added bits per image, in the end reducing the bitrate.
LoRa’s bigger SFs increase processing acquire and reception sensitivity however decrease bitrate as a result of correlation-based demodulators. Balancing vary and bitrate is important in designing LoRa techniques underneath EU863–870 ISM band obligation cycle limits.
Decrease bitrates prolong transmission time, limiting day by day messages a tool can ship with out breaching laws. Moreover, longer transmissions additionally lead to larger energy consumption which is an obstacle in low-power functions.
LoRaPHY
LoRaPHY is the bodily layer protocol of the LoRaWAN protocol stack. Bodily layer radio packet codecs depend upon the kind of message, which may be an uplink or downlink message.
The LoRa modulation is proprietary. However, by waveform evaluation, it’s attainable to get some details about packet construction on the radio stage. As famous by El Rachkidy:
In uplink communications, the preamble consists of up-chirps and the information consists of down-chirps. In downlink communications, the preamble consists of down-chirps and the information consists of up-chirps.
Radio packet preambles, 10–65539 symbols (default 12), assist receivers synchronize with incoming knowledge circulation.
LoRa packet headers present payload size, error code fee, and non-obligatory CRC, included solely in uplink messages. Headers even have a compulsory CRC area. The payloads of the bodily layer radio packets include the hyperlink layer frames.
This text is predicated on my grasp’s dissertation, the place I explored the event of compact and environment friendly LoRaWAN finish nodes with a deal with antenna miniaturization and energy optimization for IoT functions.
