DJI Neo – Preliminary Setup Information (with Video)

DJI Neo – Preliminary Setup Information (with Video)


Have you ever acquired a brand new DJI Neo not too long ago? In that case you may need a couple of questions on setting the Neo up for its first flight.

On this article and video tutorial we might be contemplating the next:

  • What’s within the numerous combos
  • The Clever Flight Modes
  • Charging the entire batteries
  • Downloading and putting in the DJI Fly Software program
  • Performing the primary Firmware Replace

If you’re both new to drones or skilled, you may need seen that the DJI Neo is exclusive within the DJI EcoSystem: you possibly can fly the Neo and not using a controller, with solely your telephone, or with a DJI distant controller and DJI Goggles 3.

With so many elements of the Neo that may be coated, at present we’ll deal with what is required to get the Neo out of the field and up within the air.

We’ll go into all the assorted flight modes and methods to manage the Neo in future movies.

Combos/Packages

Drone-only Package

  • DJI Neo
  • Clever Flight Battery x 1 – put in
  • Spare propeller x 2
  • Screwdriver
  • USB-C charging and information cable

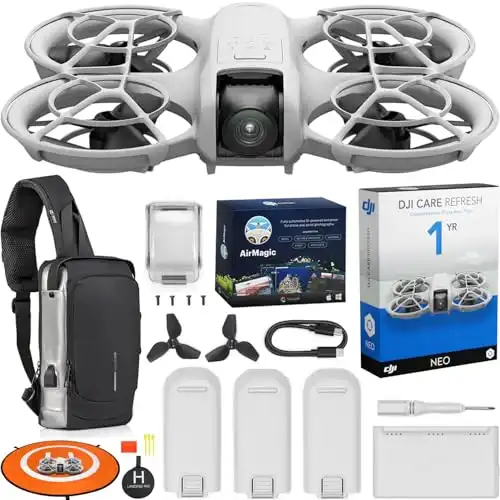

DJI Neo Drone 4K UHD Mini Quadcopter

135g Self Flying Drone that Follows You, Palm Takeoff, AI Topic Monitoring, QuickShots, (Controller-Free) Bundle with Deco Gear Equipment


Purchase from Amazon

We earn a fee for those who make a purchase order, at no extra price to you.

12/26/2024 06:43 pm GMT

Combo Bundle

  • DJI Neo
  • Clever Flight Battery x 3
  • Charging Hub
  • Spare propeller x 2
  • Screwdriver
  • USB-C charging and information cable

Our Decide

DJI RC-N3 Combo Bundle

  • DJI Neo
  • DJI RC-N3 Distant Controller
  • Clever Flight Battery x 3
  • Charging Hub
  • Spare propeller x 2
  • Screwdriver
  • USB-C charging and information cable

The DJI Neo

Trying on the Neo, we see it’s fairly small in hand and may be very light-weight.

Picture Credt: Dan Bayne/Droneblog

Beginning with the entrance, a small gimbal guard protects the Neo’s single-axis gimbal.

Not like conventional digicam drones, which typically have three-axis gimbals, the single-axis gimbal on the Neo is electronically stabilized.

The stabilization on the DJI Neo is much like that of DJI’s motion cameras, which make the most of DJI’s proprietary EIS (Digital Picture Stabilization) know-how.

To take away the gimbal cowl, merely press down on the duvet with 2 fingers and pull the duvet off.

Picture Credt: Dan Bayne/Droneblog

Persevering with across the drone, we see two buttons: one on the rear and one in direction of the entrance. The button in direction of the entrance is used to decide on the assorted autonomous flight modes.

The DJI Neo clever flight modes are:

  • Observe Me
  • Dronie
  • Circle
  • Rocket
  • Highlight
  • Customized – this permits the person to outline precisely what the flight mode does

To decide on the flight mode, press the choice button till you find your required mode.

The button on the rear of the Neo is dual-purpose: it turns the Neo on and off and can be used to pair the Neo with a bodily distant management.

To energy on the Neo, press the ability button as soon as then maintain it, you’ll hear an audible tone and see the LED mild up. To show the Neo off, you’ll press the ability button as soon as after which maintain it.

Beneath the ability button on the again, there’s a USB-C port that can be utilized to:

  • cost the battery when put in within the Neo
  • replace the Neo’s firmware, utilizing the provided information and charging cable – which we’ll focus on additional on this article, and
  • switch footage from the interior storage to a pc or cellular gadget

Concerning inside storage, you’ll discover there is no such thing as a SD card slot on the Neo.

It is because, just like the non-Professional variations of DJI’s Mini drones, the Neo doesn’t use Micro SD playing cards. All footage from the Neo is saved on 22 GB of inside storage.

Fortunately, along with accessing the footage from a PC or Mac, footage might be wirelessly transferred to a cellular gadget utilizing DJI’s QuickTransfer characteristic.

Sensors

On the backside of the Neo, there are infrared imaginative and prescient sensors. These sensors assist the Neo stay secure and keep a gentle hover.

Picture Credt: Dan Bayne/Droneblog

Though the Neo does an awesome job monitoring topics, it doesn’t have impediment avoidance sensors. The dearth of those sensors can lead to a crash if flying near obstacles.

Clever Flight Batteries

The clever flight batteries present the Neo with as much as 17 minutes of flight time, with the prop guards put in.

Picture Credt: Dan Bayne/Droneblog

If the propeller guards are eliminated, the flight time will increase to 18 minutes. After all, flight occasions will fluctuate primarily based on precise flight situations.

To take away the battery, press the tab and slide out the battery. To place the battery again in, align the grooves on the battery with these on the Neo and slide the battery in. You’ll hear a click on when the battery sits accurately.

To Cost the Batteries

There are two alternative ways to cost the Neo’s batteries.

Sadly, as with most of DJIs latest drones, a wall charger will not be included. Whereas DJI suggests utilizing their 65-watt charger, we’ve discovered that any 65-watt and even 100-watt PD charger’s will work nicely.

If in case you have the Drone Solely package, you will want to cost the battery whereas it’s inserted into the Neo.

To cost the one battery throughout the Neo, find the USB-C port on the rear of the Neo. Plug the provided USB-C charging cable into the port after which into your charger.

Picture Credt: Dan Bayne/Droneblog

If in case you have both of the Combo Packages, with the three batteries and battery hub, it is possible for you to to cost all three batteries, concurrently, within the hub. This may be executed with any charger rated 45 watts or greater.

To test how a lot battery energy is left within the batteries, whereas within the charging hub, press the ability button on the aspect of the hub.

To cost the batteries throughout the battery hub, guarantee they’re absolutely seated within the hub. Plug the charger into an outlet after which plug within the provided USB-C cable into the hub. After a second you will notice the batteries start to cost.

Picture Credt: Dan Bayne/Droneblog

When you opted for the combo with the RC-N3 distant controller, additionally, you will must cost the RC.

To cost the RC-N3 Distant Controller, find the USB-C port on the underside of the controller and plug it in.

When charging begins, the LEDs on the entrance of the distant controller will start to blink, signifying charging.

DJI Fly Software program

With the entire batteries charged and able to go, there’s a crucial step wanted to start out flying the Neo.

Sure, the Neo is exclusive in that it doesn’t want a controller or a telephone to fly, nonetheless, to fly the Neo, you will want to activate it and replace the firmware, utilizing your telephone.

To do that, you will want to have the DJI Fly app put in in your telephone.

If utilizing an iPhone, you possibly can seek for the DJI Fly app within the Apple App Retailer.

The DJI Fly app for Android is simply obtainable on-line on DJI’s web site.

The place to Obtain DJI Fly

If you’re utilizing both an Android or iOS telephone, the hyperlinks to obtain the DJI Fly app are as follows:

Moreover, out of your smartphone, you are able to do a Google Seek for “DJI Obtain Middle”.

Within the outcomes, select DJI Fly and you can be delivered to the software program downloads web page.

Word: the DJI Fly app for Android is simply obtainable on-line on the hyperlink above, and is not obtainable within the Google Play retailer, whereas the iOS model for Apple gadgets is accessible through the App Retailer.

Activating the DJI Neo

STEP 1: After you’ve put in the DJI Fly app, open DJI Fly. Subsequent activate the Neo by urgent the ability button as soon as, then holding the ability button.

STEP 2: On the left of the primary DJI Fly house display screen, you will notice a glowing define across the message: “QuickTransfer – New DJI-NEO-xxxx detected”. Faucet that field.

The Neo will now begin the method of connecting to the DJY Fly app, through WiFi.

STEP 3: Press and maintain the ability button on the Neo for 3 seconds. After a couple of seconds, try to be offered with the choice to hitch the Neo’s WiFi community. – press JOIN.

After a couple of seconds, the Neo might be paired with the DJI Fly app.

STEP 4: On the Activate DJI Gadget display screen, select ACTIVATE. At this level both log in along with your DJI account in case you have one or create a brand new account.

As soon as logged in, the Neo will start activating. You may both select to Bind the Activation code or SKIP. After you make your alternative, you’ll be introduced again to the primary DJI Fly house display screen.

Putting in the Neo Firmware

At this level, you will want to put in the brand new Neo Firmware.

On the major DJI Fly house display screen, select INSTALL (on the precise aspect of the display screen) to start the method. Faucet DOWNLOAD and the brand new firmware will start putting in on the Neo.

The method can take a couple of minutes to finish. After 100% completion, the firmware might be absolutely put in.

In case your Neo doesn’t mechanically restart after the firmware has been up to date, flip the Neo again on, then faucet CONNECT on the primary display screen.

You’ll then be introduced into the Neo part of DJI fly the place you possibly can both watch a couple of getting began tutorials or skip to the primary web page with choices to vary the parameters of the assorted clever flight modes.
