Sandia Nationwide Laboratories, in collaboration with Wetzel Wind Vitality Companies and Stratasys Direct Inc., has designed an revolutionary turbine blade tip that would considerably enhance the effectivity of wind power manufacturing. This new design is a part of the Additively Manufactured System Built-in Tip (AMSIT) undertaking, which goals to combine superior applied sciences into wind turbine parts, in the end lowering the price of electrical energy generated by wind generators.
A New Method to Turbine Blade Design
The AMSIT undertaking, funded by the U.S. Division of Vitality’s Superior Supplies and Manufacturing Applied sciences Workplace, addresses a number of challenges at the moment confronted in turbine blade manufacturing. These embody points with guide composite-fiber-epoxy processes, high quality management issues resulting in blade defects, erosion injury, and the excessive prices and complexities related to transporting giant blades.
The important thing innovation on this undertaking is using 3D printing to create a modular blade tip. Brent Houchens, the principal investigator of the AMSIT undertaking, defined, “3D printing gives a path to handle all of those points by integrating applied sciences. We thought of a winglet to extend raise, floor texturing to scale back stream separation, and options to enhance modern erosion safety and lightning safety.”

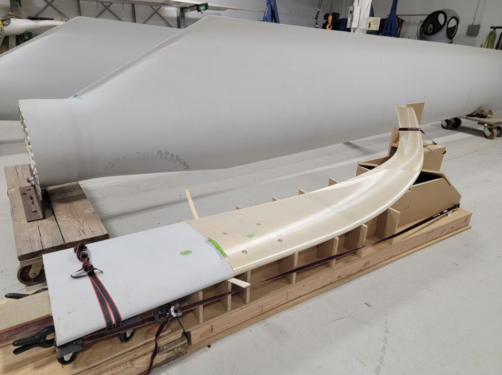

This 3D-printed blade tip, designed for a 200 kilowatt-scale turbine with 13-meter blades, replaces about 15% of the normal blade tip. The brand new design improves aerodynamic efficiency with an upwind winglet and floor texturing whereas additionally incorporating built-in safety in opposition to erosion and lightning. The modular nature of the design permits for simpler and quicker alternative of broken suggestions, reminiscent of these struck by lightning, doubtlessly lowering downtime and upkeep prices.
Affect on Wind Vitality Prices
One of many predominant objectives of the AMSIT undertaking is to scale back the levelized price of electrical energy (LCOE) over the lifetime of a wind turbine. Preliminary fashions point out that the brand new blade tip design might lower the LCOE by 3%-4% on common at wind speeds under 10 meters per second. This discount is achieved with out altering the utmost rated energy of the generators, permitting the AMSIT blades to be examined on present machines.
The mixing of 3D printing in turbine blade manufacturing additionally opens up new potentialities for exploring advanced geometries which are difficult to supply utilizing conventional strategies. As 3D printing know-how advances and turns into cheaper, the LCOE for designs like AMSIT is anticipated to proceed reducing.
Testing and Fieldwork
To make sure the sturdiness of the 3D-printed supplies, AMSIT researchers performed laboratory exams to simulate lightning strikes on the blade suggestions. These exams included situations with direct strikes to a simulated lightning safety system, floor strikes away from the system, and strikes with none safety. The outcomes from these exams will inform additional improvement and optimization of the blade suggestions.
The crew additionally used laser scanning to precisely match the 3D-printed tricks to the present blades. The outer shell of the blades was eliminated to connect the brand new suggestions and winglets, which had been then subjected to ground-based structural exams. These parts will likely be additional examined on the Sandia Scaled Wind Farm Expertise web site in Lubbock, Texas, the place they may endure subject demonstrations.
In accordance with Brent Houchens, the AMSIT undertaking exemplifies how 3D printing can improve the efficiency and scale back the prices of wind power. “The AMSIT undertaking demonstrates how integrating applied sciences via 3D printing might scale back the price of wind power by bettering aerodynamic efficiency and lowering restore prices,” he stated. Following the completion of the undertaking, the modified blade root and stub will likely be accessible for testing different novel tip designs, paving the way in which for future improvements in wind turbine know-how.
